MY19+ CRF450X | ECU Tuning

Product Overview:

The CRF450X Tune Series offers an extensive range of calibrations designed for the factory ECU, customized to fit different hardware arrangements. No matter the configuration, riders can expect significant enhancements in power performance and overall rideability.

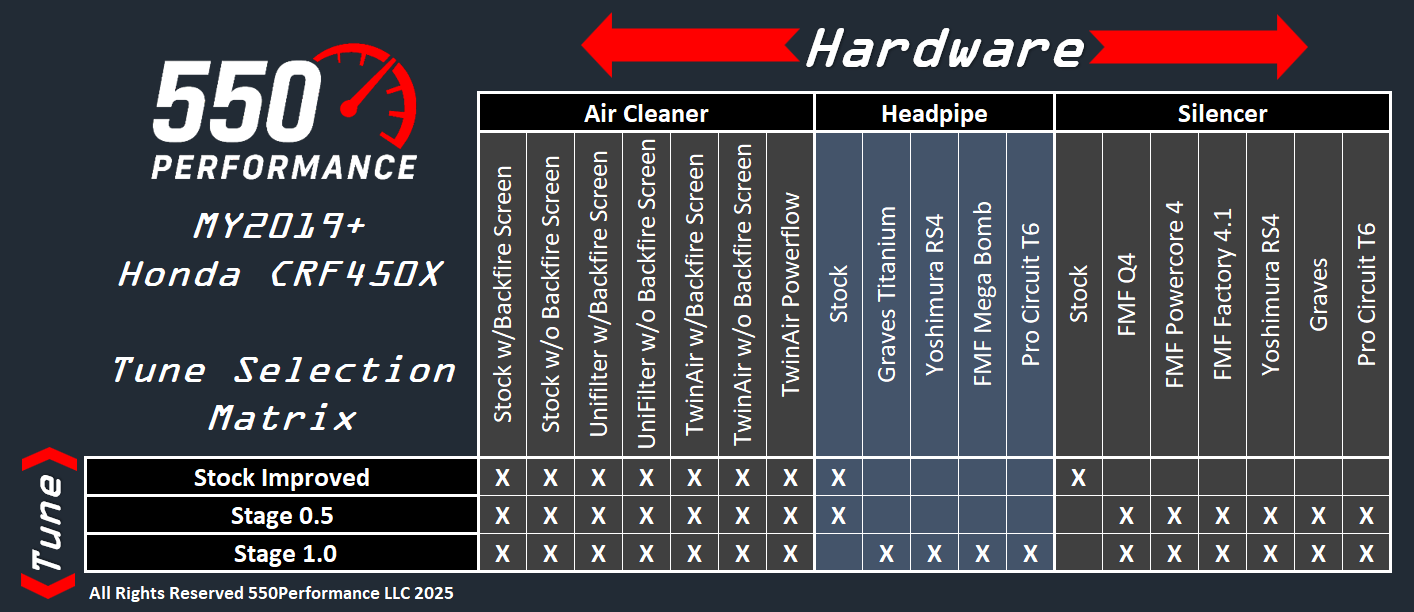

This tuning series is optimized for 91 octane (R+M)/2 (95 RON) fuel and supports typical airbox modifications and common aftermarket air filters. The series is segmented into three distinct tunes based on exhaust hardware configurations:

• Stock Improved: Compatible with the stock exhaust system, with support for modifications to the existing setup.

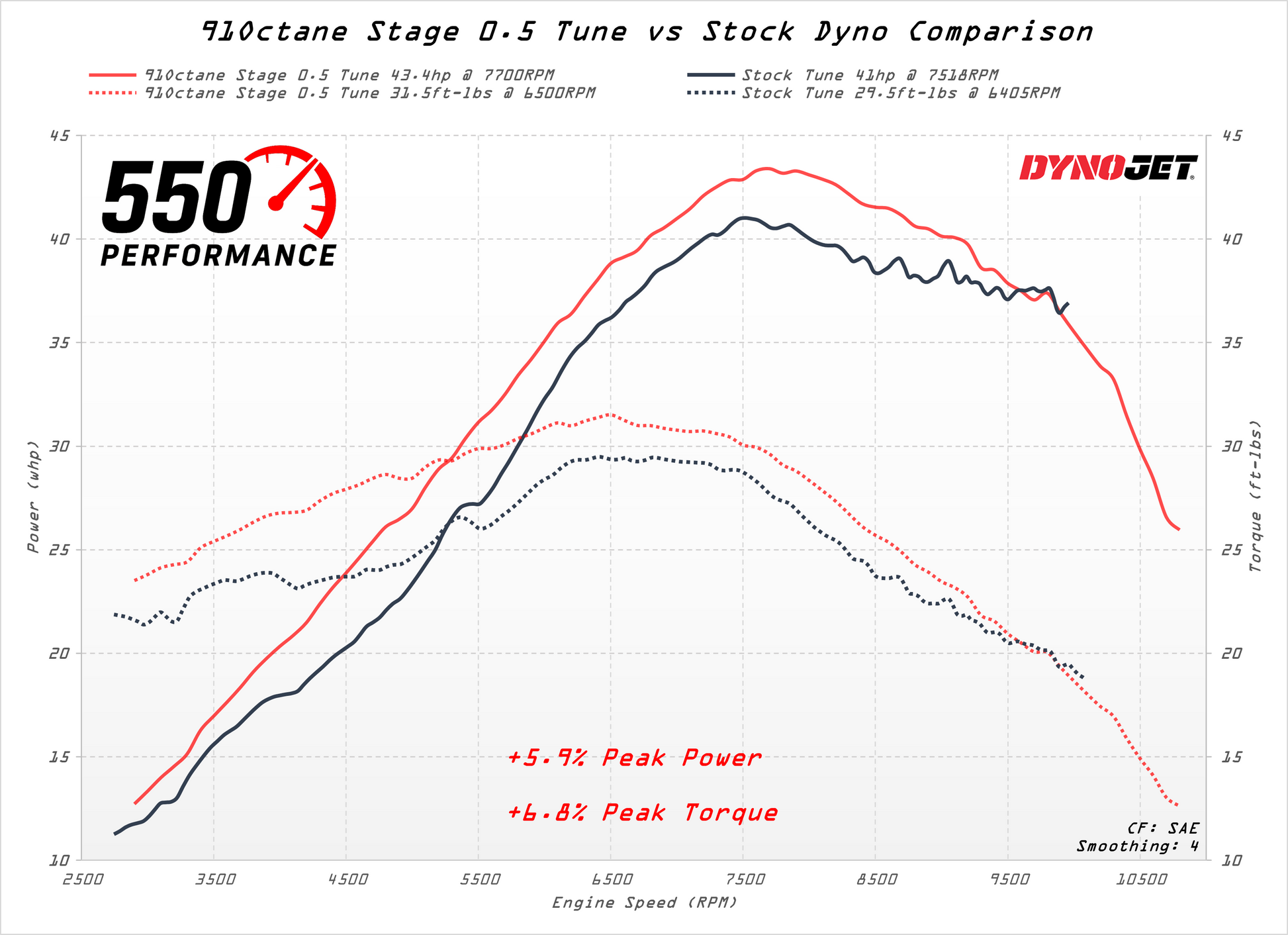

• Stage 0.5: Requires a slip-on exhaust system, such as the Graves or FMF PowerCore4/Q4 silencers.

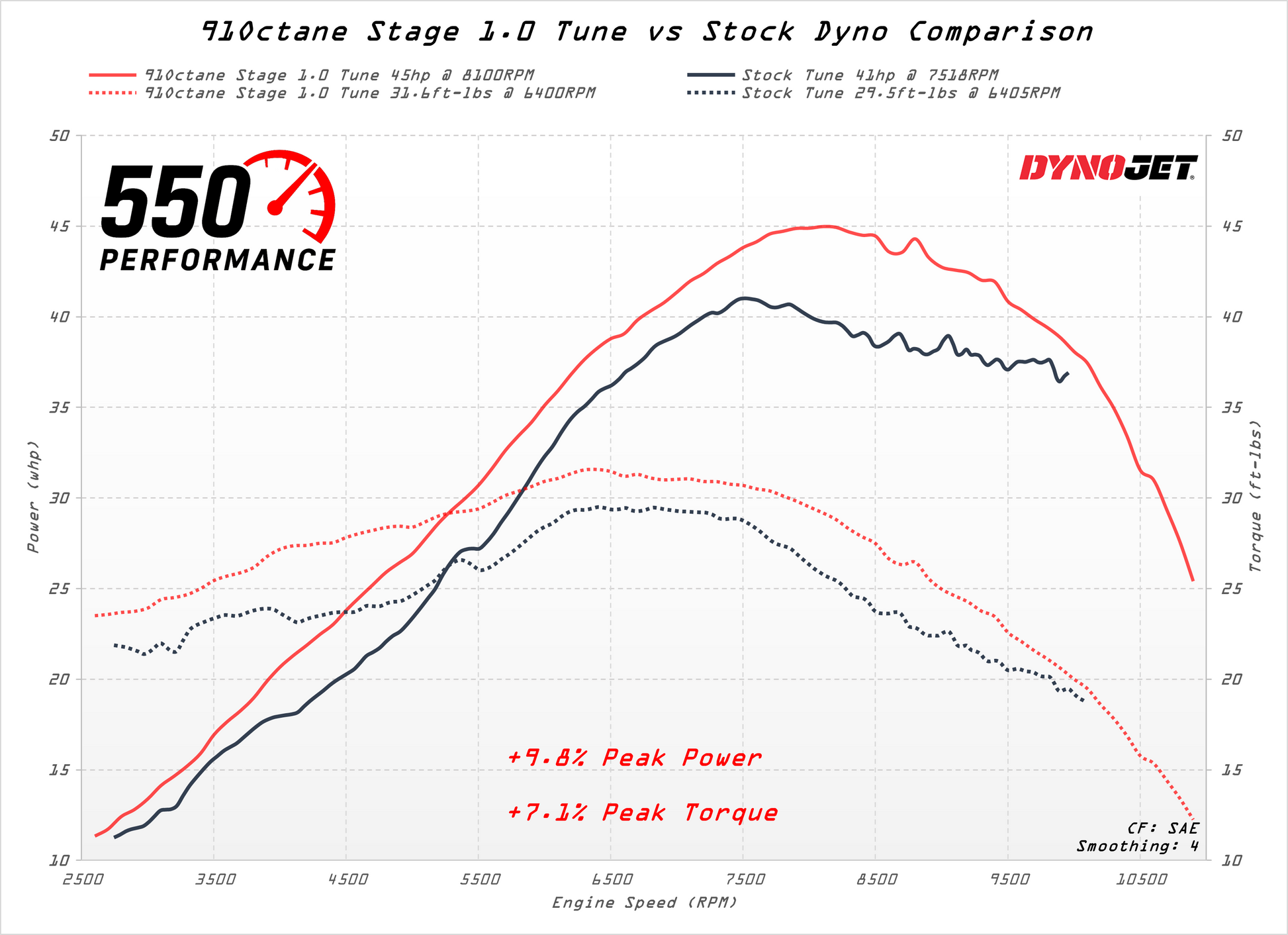

• Stage 1.0: Designed for a full exhaust system, such as the Yoshimura RS4, FMF Megabomb with Q4/PC4, or Graves.

Both primary and secondary fuel maps have been meticulously revised and calibrated to ensure continued operation in the event of critical system sensor failures. For instance, if the TPS sensor fails, the bike will maintain operational integrity without significant degradation in performance.

550Performance LLC provides free tune updates for existing CRF450X tune customers. If you initially purchase the Stock Improved tune and later upgrade to a full exhaust system, we will update your ECU at no additional cost—customers are only responsible for shipping and handling fees.

Technical Features:

• Engine Speed Limiter: Set between 10,500 - 11,000 RPM, depending on the selected tune
• Ignition Timing: Revised tables optimized for maximum power and drivability
• Primary Fuel Mapping: Calibrated for peak power output
• Secondary Fuel Mapping: Designed for component protection
• Startup/Post-Start Fuel Mapping: Redefined for improved startup behavior
• Tip-In Accelerator Pump Fueling: Adjusted for responsive throttle input
• Deceleration Fuel Cut: Eliminated to reduce on/off throttle sensitivity

Hardware Compatibility:

• Model: 2019+ Honda CRF450X
• ECU Part Numbers: 38770-MKE-A41, 38770-MKE-AJ1, 38770-MKE-B31

Mailing Instructions:

Send your ECU to the following address:

550Performance LLC
ATTN: ECU Reflash + Order Number (provided with order confirmation email)
W3183 Willow Lane
Hilbert, Wisconsin 54129
USA

Upon receipt, we will flash the ECU and send it back to you. Typical turnaround is 1 - 3 business days. In some rare cases this could be as long as 5 business days.

Important Notice:

550Performance LLC is not liable for any additional charges incurred upon the arrival of products at international destinations. This includes, but is not limited to:

• Import Duties
• Import VAT
• Customs Fees
• Warehousing Fees
• Parcelforce UK Fees
• Any other charges related to the importation of goods ordered from 550Performance LLC.

Disclaimer:

FOR CLOSED COURSE COMPETITION USE ONLY. NOT INTENDED FOR STREET USE.
NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION-CONTROLLED MOTOR VEHICLES.
